New machinery

Brand
AUREO – our own manufacture

Model
Custom-built tunnel furnace, dual chamber control

Description

Tunnel furnace for annealing and de-oxidising in a controlled atmosphere, our own build under the AUREO brand, Made in Italy. Built to measure to the customer’s requirements, with dual chamber control to manage two temperature zones independently. Heated tunnel with cooling chamber at the outlet, control panel with touch screen operator terminal, flowmeters for atmosphere gas dosing, alarms and emergency stop. 400 V supply. Second photo: control panel and flowmeters in detail.

Brand
Digital readout with mounting bracket kit of our own manufacture

Model
Adaptable to any rolling mill – new to the range

Description

Thickness control system for rolling mills. The readout continuously tracks roll position and shows the working dimension on the display: sheet thickness is always under control, adjusted precisely and repeatable from pass to pass and batch to batch. Set the required value and roll until you read it, with no trial and error and no need to measure the piece at every pass. Large-digit display readable with the machine running and a three-key pad: millimetre/inch switching, absolute or relative reading with zeroing at any point (ABS-REL) and enter/reset. Supplied complete with our own bracket system, adaptable to any rolling mill: it also fits machines already in service, with no modification to the structure. Second photo: the readout installed on the mill.

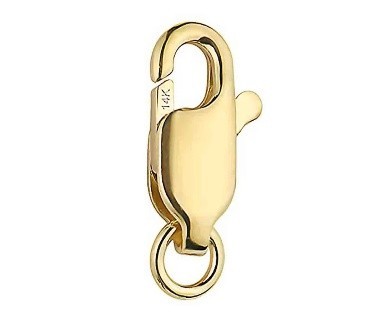

Line for in-house production of Lobster (LCA), Fish (FCA) and custom (CCA) clasps in gold, silver and base metals. Modular configuration defined according to the model and production requirements.

The process includes shell and trigger blanking, annealing, pneumatic bending, manual shell welding, stainless steel spring insertion and semi-automatic assembly. This is not a fully automatic line.

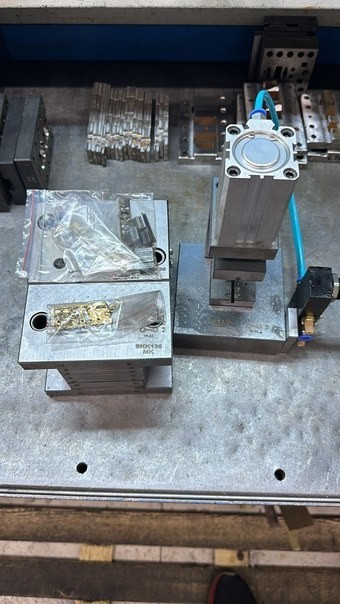

Separate progressive dies for shell and trigger, with strip feeding and compatibility with hydraulic presses of at least 40 t. Listed sizes: LCA 2.76 × 7.3 to 8 × 16.1 mm; FCA 4 × 7.5 to 8.7 × 14.9 mm. Custom sizes on request.

Assembly station: 230 V single-phase, 50 Hz, 0.2 kW; compressed air up to 10 bar, 150 Nl/min; 75 × 43 × 112 cm (H), 45 kg. A semi-automatic bending and TIG welding station and a loader are available as optional configurations; equipment to be agreed.

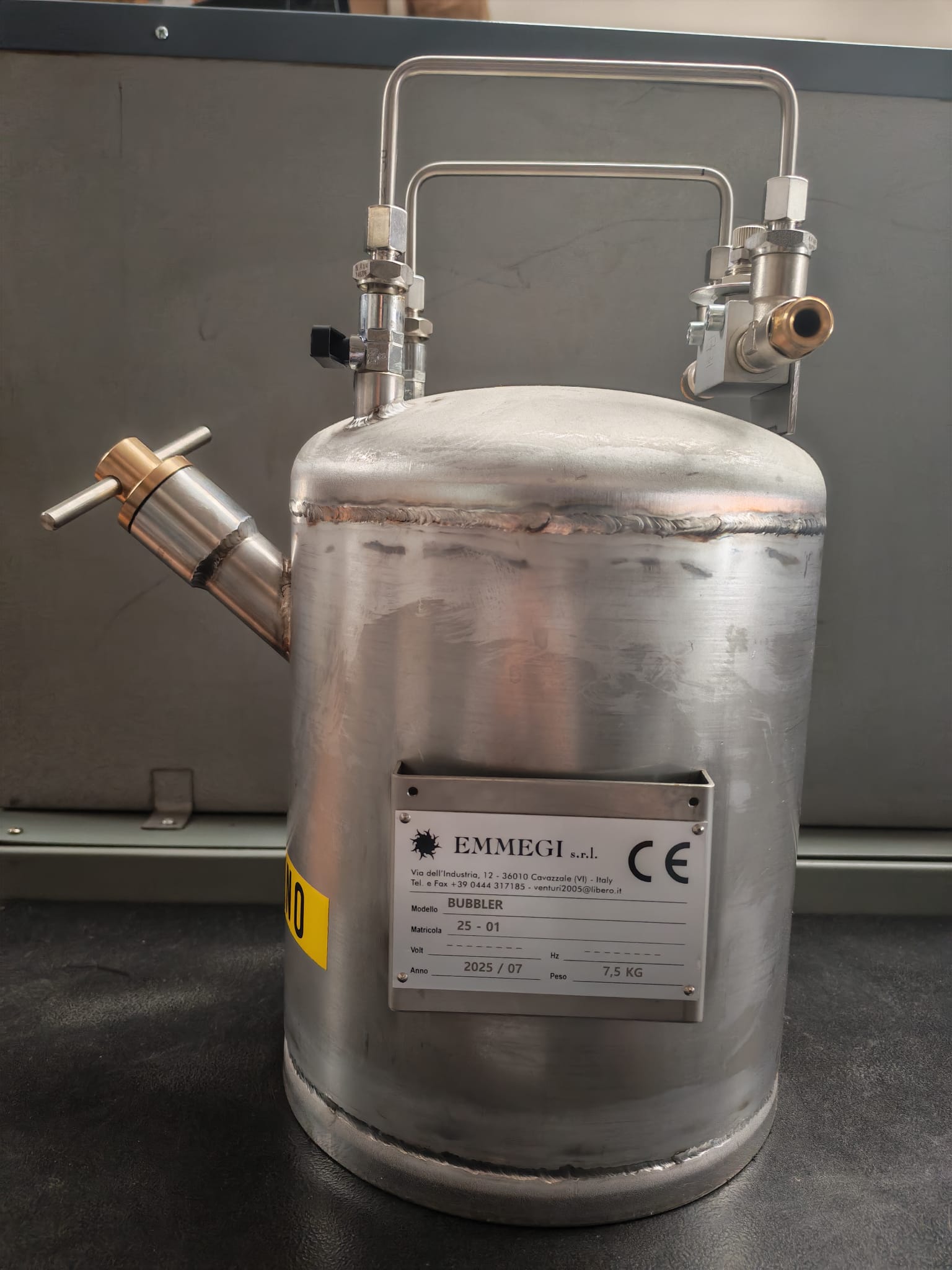

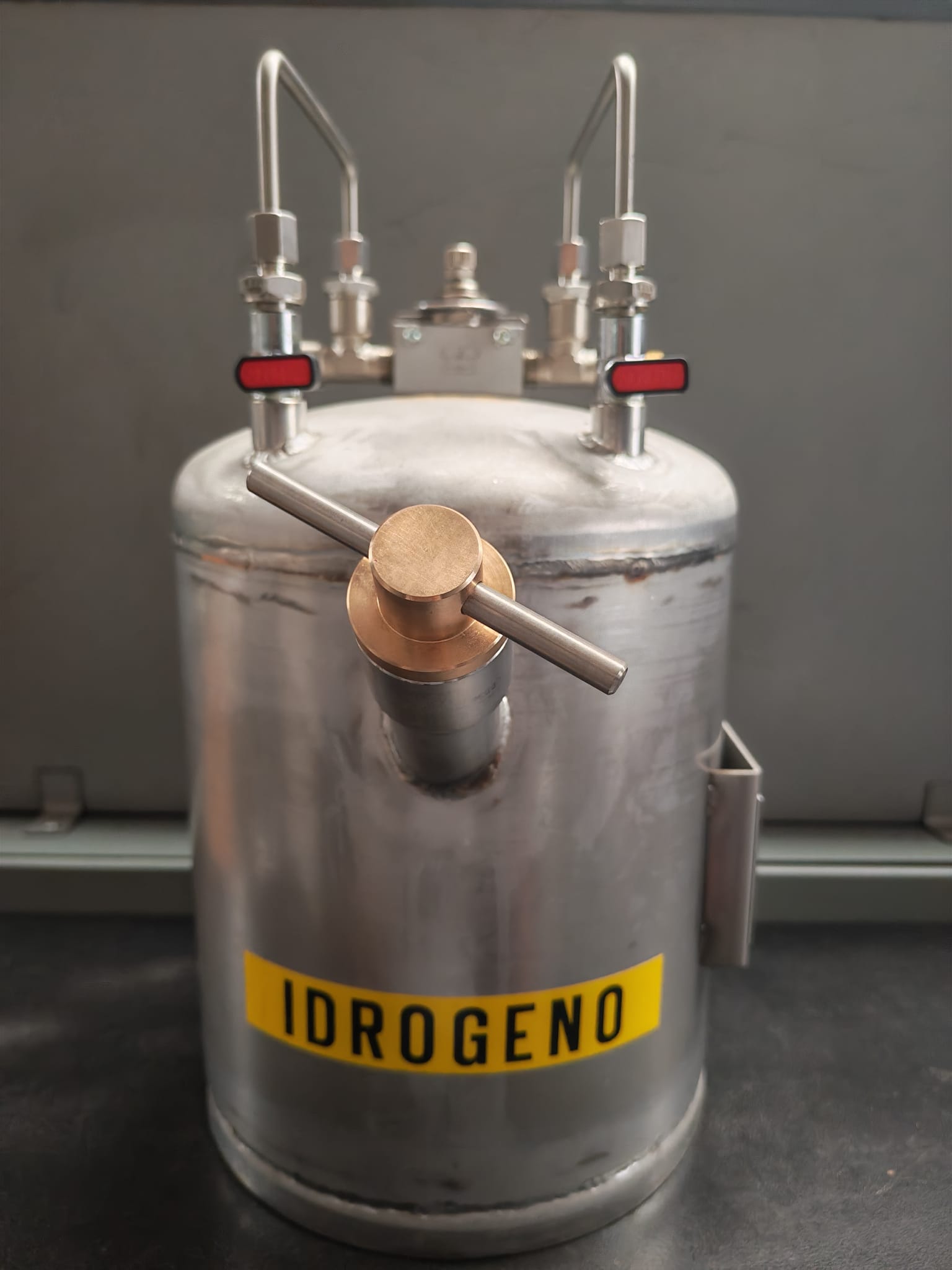

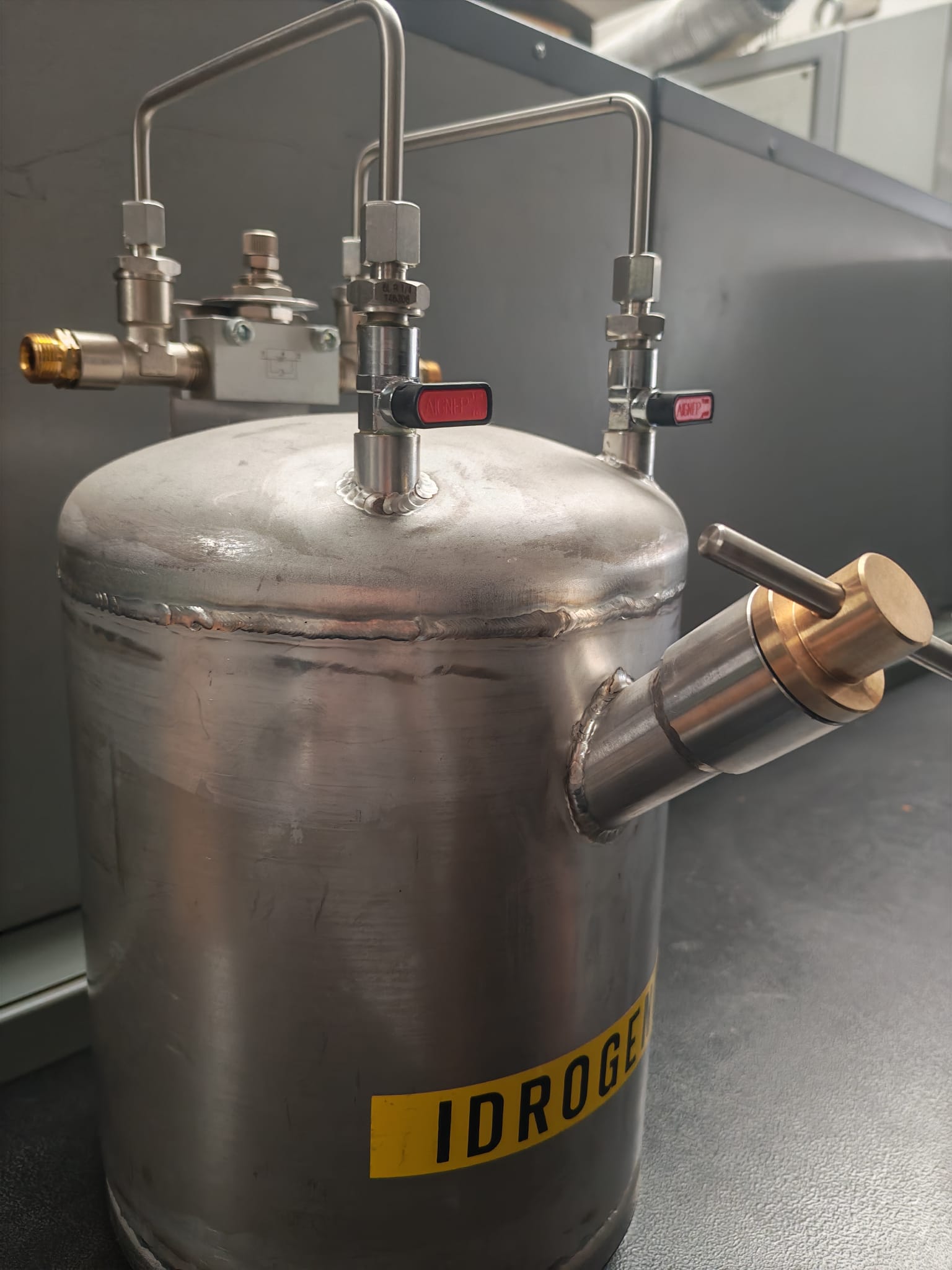

EMMEGI equipment for flame-based surface treatment and brazing of metals, with simultaneous surface deoxidation.

Equipped with a tank, flame arrestor, manual hydrogen supply and mixture return valves, flow regulator and brass liquid filling cap.

Total volume: 9.5 litres. Maximum liquid additive volume: 1.5 litres. Weight: 7.5 kg. Normal operating pressure: 0.5–0.7 bar; maximum pressure: 1 bar.

Designed for non-saline, non-aggressive industrial environments at 10–30 °C and 20–60% humidity. Use with deoxidising fluid supplied by EMMEGI or an equivalent, following the manufacturer’s instructions.
